304 Stainless Steel Wire Rope Mesh

FOB Reference Price:Get Latest Price
US $1-5 / Square Meters | 20 Square Meter/Square Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Material:
Stainless Steel Wire, Stainless Steel Wire
Type:
Rope Mesh, Stainless steel rope mesh
Application:
Protecting Mesh, Protecting Mesh
Weave Style:
Plain Weave, Plain Weave
Technique:
Woven
Model Number:
CH
Brand Name:
CH-C
Wire Diameter:
1-5MM, 1-6MM
Usage:
zoo netting
Features:
High strength , easy to handle , transportation and installation
Packing:
in wooden box or pallet
Sample:
Free sample
structure:
7X7,7X19
Supply Ability
Supply Ability:
500 Square Meter/Square Meters per Day
Packaging & Delivery
Packaging Details
packed in wooden box
Port
tianjin
Lead Time :
7-15 DAYS



Product Description

  Stainless steel wire rope mesh also name as stainless steel cable mesh , it is a kind of hand-making mesh by stainless steel wire rope . It is available in bulk rolls .The mesh can be stretched tight to conform to a rigid structure design,or can be draped like a tent to reduce impact damage to flying birds .



Material:Stainless steel rope mesh made from high-carbon steel wire rope, 304,304 a, 316L.

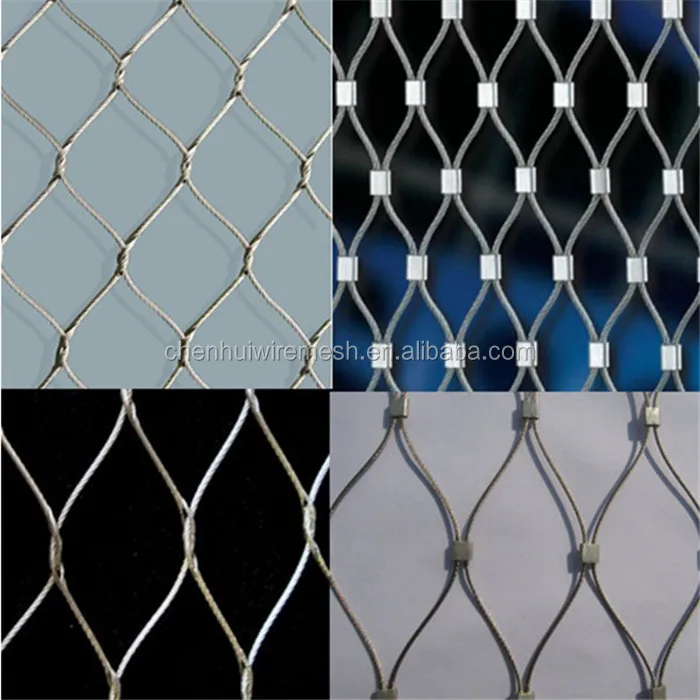

Type: The SS Cable Mesh are hand-made from the stainless steel wire rope, there are two types: knotted mesh and ferruled mesh;

1).knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.

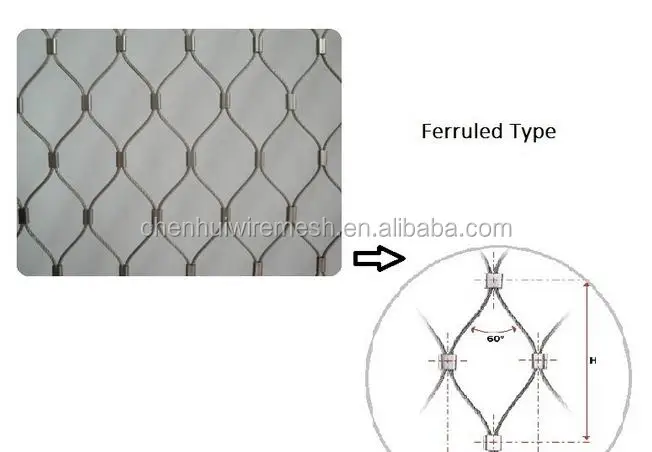

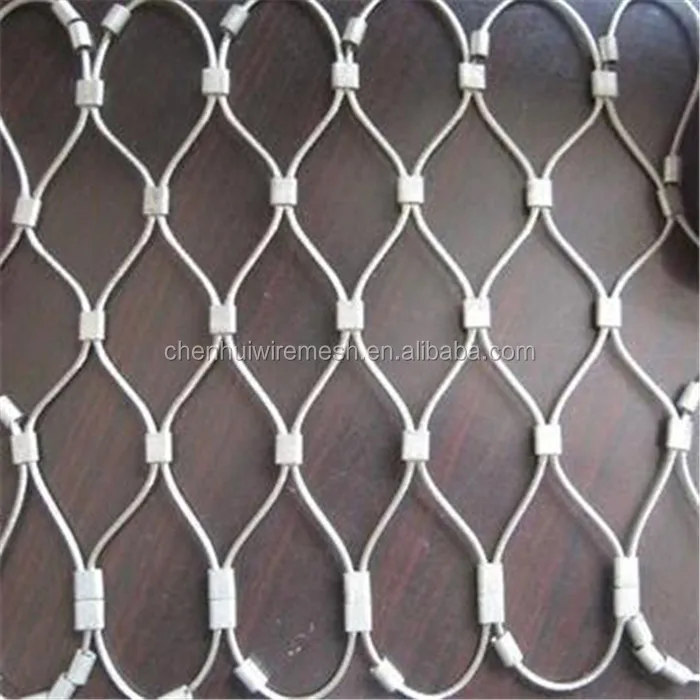

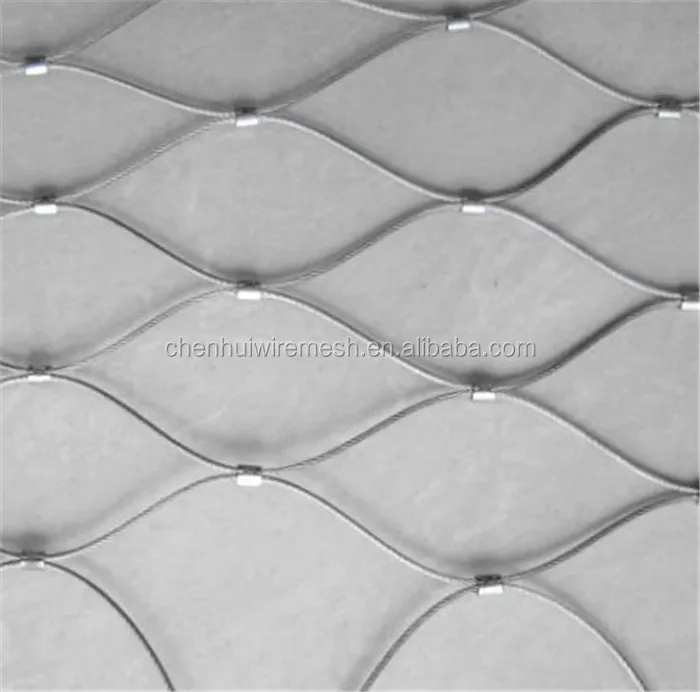

2).ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.

  stainless steel wire rope mesh Specification Table



Knotted Type



Cable Diameter

Mesh Opening size

inch

mm

inch

mm

1/8

3.2

4.75*4.75, 4*4, 3.55*3.55

120*120,102*102,90*90

3/32

2.4

4*4,3.55*3.55,2.4*2.4,3*3,2*2

102*102,90*90,60*60

76*76,51*51

5/64

2.0

3*3,2.4*2.4,2*2

1-1/2*1-1/2

76*76,60*60,51*51

38*38

1/16

1.6

3*3,2.4*2.4,2*2

1-1/2*1-1/2,1.2*1.2,1.0*1.0

76*76,60*60,51*51

38*38,30*30,25.4*25.4

3/64

1.2

1-1/2*1-1/2,1.2*1.2,1.0*1.0

4/5*4.5

38*38,30*30,25.4*25.4

20*20





Ferruled Type

Wire Rope Type

Cable Diameter

Mesh Opening Size

inch

mm

mm

7*19

1/8

3.2

150*260,120*208,100*173,90*156

7*7

3*32

2.4

150*260,120*208,100*173,90*156,80*139

7*7

5/64

2.0

150*260,120*208,100*173

90*156,80*139,70*121,60*104

7*7

1/16

1.6

120*208,100*173,90*156

80*139,70*121,60*104,51*87

7*7

3/64

1.2

80*139,70*121,51*87,40*69

















Features of stainless steel rope mesh:

1, product raw materials for high quality stainless steel wire, material level for 304.304 L, 316,316 L

2, lightweight, high strength

3, environmental degradation of its no influence

4, soft touch, efficient and protect birds feather and animal skin

5, effectively preventing the rodents and its animal bite

6 for rough installation tolerance, high.



Applications of the stainless steel wire rope mesh :

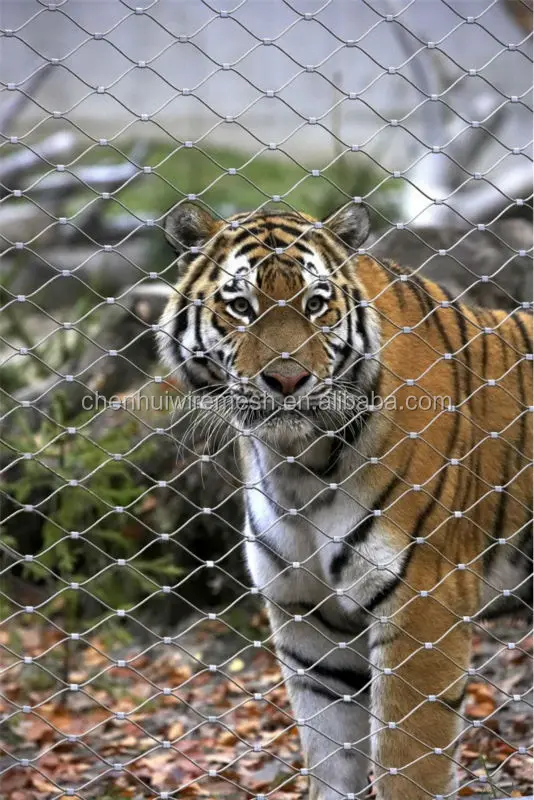

The stainless steel wire rope mesh has excellent flexible performance , virtually indestructible .most impacting -resistant and breaking resistant force force ,most resisting rain , snow , hurricane etc.Due to these features , they originally intended and now are widely applied in zoos for the construction of animal enclosure ,animal cage , aviary mesh , bird cage and bird netting . so we can also call it "Zoo mesh "

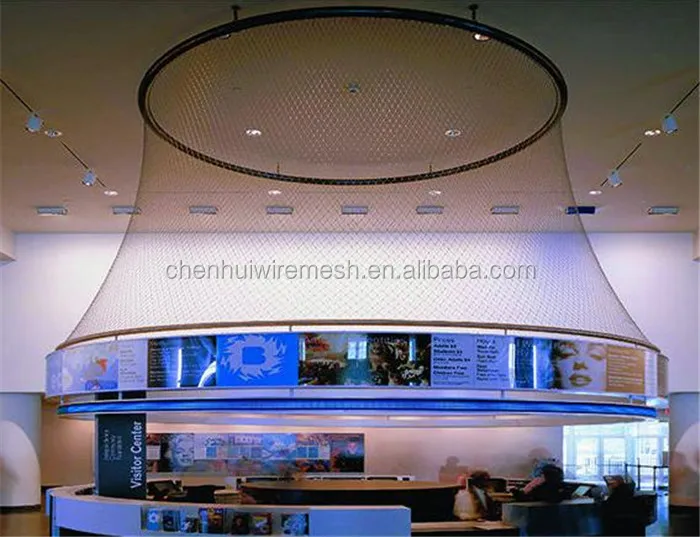

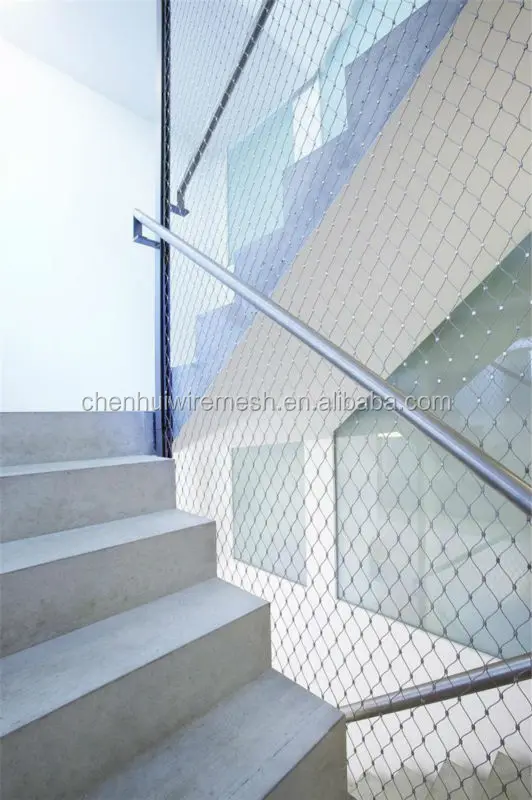

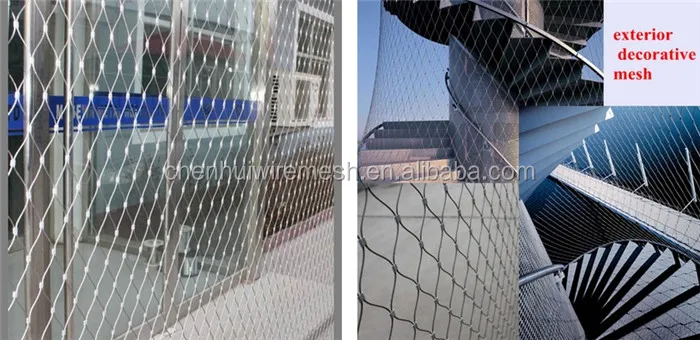

The wire rope mesh can also be used as protecting fence around the high way , lake , balcone .It can also be used as decoration mesh .
