factory micro hole perforated metal titanium sheet

FOB Reference Price:Get Latest Price
US $0.2-5 / Square Meters | 1 Square Meter/Square Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Material:
titanium
Type:
Perforated Mesh
Application:
Screen
Weave Style:
Plain Weave
Wire Diameter:
0.1-10mm
Technique:
Perforated
Model Number:
CH-PM
Brand Name:
CH
Hole shapes:
round,long,triangle,oval,etc
Sheet length:
as requirement
Perforated pattern:
straight or stagered
Margin:
Common margin or no margin
Stagered:
45,60,etc
Hole shape:
round,square,triangle,etc
Quality:
high quality
Color:
titanium color
Sample:
available and free
titanium type:
pure titanium
Supply Ability
Supply Ability:
2000 Square Meter/Square Meters per Day
Packaging & Delivery
Packaging Details
Perforated metal sheet packaging:100-1000 kgs.
1.packing on a pallet and then wrapped with plastic film,
2.wrapped with plastic film then put into wodden cases
3.Packaging as the customer's request
Port
tianjin



Product Description





Titanium Perforated round hole metal is typically produced from coil and staggered (60 degree pattern) is standard. Variations include 45 degree staggered, and straight line pattern.  Titanium perforated sheet can be produced in widths up to 60" and in any length (typically under 250" for shipping purposes).Titanium perforated sheet can be lightweight in gauge, have small or large optically appealing openings and be very suitable for many architectural and display uses. Whether used for technical or decorative applications, round hole perforations are the most frequently used in perforated products. Geometrically, a round hole is the most solid shape.

perforated metal (69)perforated metal (58)perforated metal (57)

Product name

Titanium Perforated metal (also known as titanium  perforated sheet, titanium stamping plates, or titanium perforated

screen)

Material

Titanium plate

Thickness

0.3-12.0mm

Hole shape

round, square, diamond,rectangular perforations,octagonal cane,grecian,

plum blossom etc,can be made as your design.

Mesh size

1220*2440mm,1200*2400mm,1000*2000mm or customized

Surface treatment

² PVC coated

² Powder coated

² Anodized

² Paint

² Fluorocarbon spraying

² Polishing

Thickness of Metals

The titanium plate thickness is according to your request

Perforations

Round Perforations: Staggered (60 degree pattem) is stangard. Vaniations include 45 degree staggered, and straight line pattern.

Square Perforations: Staggered or straight line pattern.

Slotted Perforations: Side staggered, end staggered, or straight lines. Slotted perforations will be round end slots: specify if square end slots are required.

Other Perforations: Available upon request.

Spacing of Perforations

Spacing for large perforations will be designated be either Centers of perforations, or by the Open Area required. Spacing for small perforations will ge designated by either Centers, or Open Area, or if more practical, by the Number of Perforated to the Square Inch.

Pattern of Perforations

Staggered Perforations ,both Round &Square: Direction of the stagger will normally be the short dimension of the sheet. Straight row of hole is normally parallel to long dimension of sheet.

Slotted Perforations: The long dimension of the slots can be fumished with either the width or length of the sheet in most cases.

Margins

Perforated Stock Size Sheet & Plates: The long sides of the sheet will be suppiled with minimummargins. The short sides of the sheet will have either minimum margins or no margins.

Sheets & Plates Re-sheared after Perforating: Special margins are available to specifications but the must carry a tolerance within the limits of the perforating tool.

Unfinished end pattern is standard in the industry.

Flatness of Sheet &Plates

In the majority of requirements, perforated sheets or plates can be furnished to AISI flatness tolerances. Before ordering any of the following special requirements, discuss then witn our sales department:

Perforated sheets with extra wide margins.

Blank areas required within the perforated area.

Perforated sheets with very large percentage of open area.

Heavy page metal in relation to the size of the perforation.

Special alloys.

Stretcher leveled sheets.

Guidelines for Minimum Hole Size/Minimum Bar Width

The rule of thumb for pertorating is that thehole diameter should not be less than the thickness of the material. The closer to a 1-to-1 ratio, the higher the probability of tool failure and the greater the precautions necessary to avoid it. Modifiactions can be made in certain instances at additional costs. For stainless steels and similar higher strength materials, it is perforable to specify at least three thickness gauges thinner than hole diameter.

The same general rule applies to bar width. The bar width should be greater than material thickness because of the increased number of punches and therefore, increased perforation tonnage. The bar with can be adjusted at increased costs.

Perforated Metal Material:

Stainless Steel, Carbon Steel, Galvanized,

Aluminum.Titanium

Perforated Metal hole shape:

Round, Square, Long round, Triangle,

Diamond, Oval, Hexangular, Slot etc.

Perforated Metal Specification:

Thickness of Perforated Sheet:

From 0.1mm to 25 mm

The Min. Hole of Perforated Metal: 0.08mm(0.0032")

The standard Size of Sheet: 1000mm*2000mm and 1000mm*2500mm.

48"*96", 48*120" and 60"*120

Perforated Metal Finished Process:

Leveling, Shearing, Circle Shearing,

Bar Coding, Labeling, Custom Packaging, Degreasing,

Deburring, Forming, Blanking, Annealing Painting,

Powder coating, Anodizing, Welding, Polishing, Joining,

Bending, rolling ect.

Also If we don't stock it, we make it, if we can't make it, we can find it.

perforated metal (19)perforated metal (16)perforated metal (73)

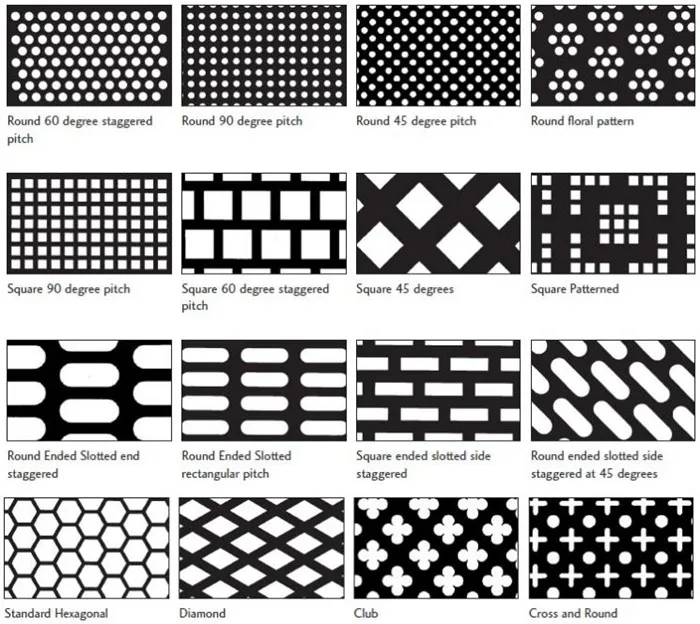

Shapes of perforated sheet Choose from tooling capable of perforating round, square, oblong, triangle, slot, hex, oval, diamond and a broad variety of odd-shaped holes.
perforated metal (21)perforated metal (66)
perforated metal (92)

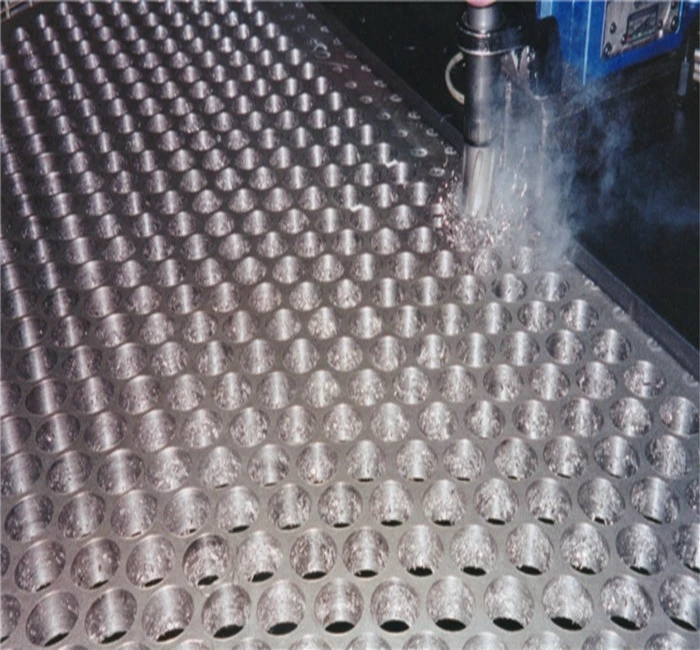

Easy, fast and inexpensive

Our extensive perforating facilities include advanced computerized sectional presses. For your prototypes and short-run jobs, this capability enables YILIDA to precision-perforate at an economical price competitive with slower techniques. It also means that lead time and turn-around are much quicker, with little or no tooling costs involved.

characteristics:

Easy installation

Can be painted or polished and anodizing.

The thickness of materials is wide range from 0.3mm-8mm.

Different hole size patterns

Attractive appearance.

Lightweight and Durable.

perforated metal (52)perforated metal (53)

perforated metal (105)

Application of perforated metal :

1. Widely used in highway, railway, subway and other transportation facilities in the municipal environmental noise control barrier wall construction objects, generator room, factories, and other noise source in noise reduction noise with sound-absorbing panels;

2. Can also be used in the building ceiling, wall of sound-absorbing material;

3. Can be used for building stairs, balconies, tables and chairs in the beautifully decorated plate of environmental protection;

4. Can be used for mechanical equipment, protective cover, ornate speaker mesh cover, food ,feed mill screen used mine, mine screening, engineering character screen, stainless steel kitchen equipment fruit basket, food cover, fruit and other kitchen utensils, and shelves of shopping malls with a net, decoration, grain storage with breathable mesh ventilation .

perforated metal (17)perforated metal (9)perforated metal (18)

Value Added Services for perforated metal:

Besides perforating, we offer the following additiona“value added”services:

Shearing

Cut to Length

Cleaning/Degreasing

Deburring/polishing

Siltting

Roller-leveling

Fabricating

Form/Notching

Stamping/Blank

Welding

Painting

Coating

Anodizing

Time Saving

VOC & CFC Free Cleaning

E.D.I.

Bar Coding.



Packaging & Shipping



Packaging of titanium perforated metal:

Perforated metal sheet packaging:100-1000 kgs.

1.packing on a pallet and then wrapped with plastic film,

2.wrapped with plastic film then put into wodden cases

3.Packaging as the customer's request

Shipping of titanium  perforated metal:

Sample;DHL/EMS/UPS/TNT/EXPRESS

Large Order:I,we recommand you by SEA ,or by AIR if in an emergency
