flexible x-tend cable stainless steel rope mesh

FOB Reference Price:Get Latest Price
US $2-35 / Square Meters | 10 Square Meter/Square Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Material:
Stainless Steel Wire, stainless steel
Type:
Rope Mesh
Application:
Woven Wire Mesh
Weave Style:
handmade
Wire Diameter:
1.2-5mm
Technique:
Woven
Model Number:
CH-S
Brand Name:
CH
mesh aperture:
2.5cm to 15cm
quality:
grade A
material type:
304,316.316L
Cable type:
7x7,7x19
Color:
black, yellow ,blue or as your request
Size:
Customized Width and Length
Mesh type 1:
stainless steel woven rope mesh
Mesh type 2:
stainless steel ferrule mesh
Packaging:
packed in wooden box
Supply Ability
Supply Ability:
600 Square Meter/Square Meters per Day we can produce stainless steel rope mesh in time
Packaging & Delivery
Packaging Details
(1)bundles or as request
(2)Inside the roll with "paper tube" to reduce the pressure while loading.
Then wrapped with "plastic film" as well as the "woven bag" on the finished roll.
Final loaded in the strong wooden case or as customers' requirement.
(3)The stainless steel cable mesh is covered by plastic bag, the loaded in cartons.
Outside the carton, covered by plastic film.
Finally, cartons with stainless steel cable mesh are loaded to strong wooden case.
Port
tianjin



Product Description

 You can choose every color and type of stainless steel rope net that you need.We can produce stainless steel rope mesh according the shape ,size that you need.



Stainless Steel Wire Rope Fence Mesh material is producing by high quality stainless steel wire cable, the stainless steel grade includes type 304, 304 L, 316 and 316L. The structures of Stainless Steel Wire Rope Fence Mesh have 7 x 7 and 7 x 19. All the material for producing Stainless Steel Wire Rope Fence Mesh was imported form South Korea and Japan which have super quality. The standard Stainless Steel Wire Rope Fence Mesh diameter includes 1/8", 3/32", 1/16", and 3/64", the standard mesh opening size includes 2" x 2", 3" x 3" and 4" x 4".

Stainless steel wire rope mesh are mainly used in the hotels, shopping malls, supermarkets, office, indoor decoration, mechanical protective cover, electrical ventilation, aquaculture and many other industries.

Properties of stainless steel rope mesh

a.Full structure of stainless steel wire rope

b.Properly aperture against very application

c.Decorative and Protection wire rope mesh

d.Beauty structure

The type of stainless steel rope mesh

1. Knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.

2.Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.



Flexible Stainless Steel Cable Mesh

Type

Knotted cable mesh

Ferrule cable mesh






Combination

Inter-woven

Seamless ferrule

Hole pattern

90 degree diamond hole

60 degree diamond hole

Material

SS304, 316, 316L, etc

Cable diameter

1 ~ 4 mm

Cable structure

7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm)

Diamond size

20 ~ 200 mm

Mesh Orientation

Horizontal , Vertical

Feature

Quality material, High flexibility, Anti-corrosion,

Longevity, Cost effectiveness, Easy

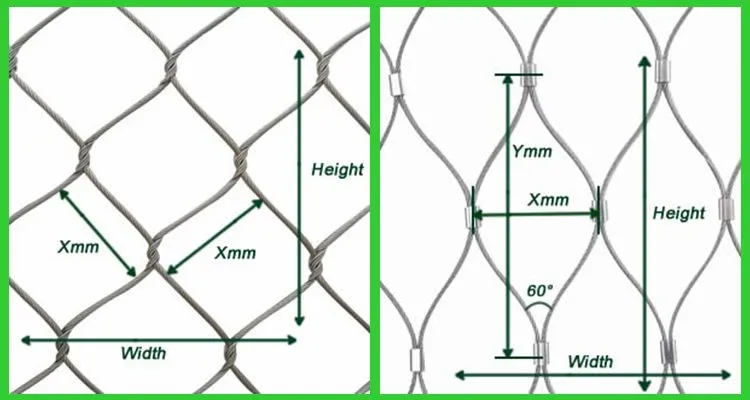

How to confirm the mesh size of stainless steel rope mesh

1. Measure of stainless steel cable mesh



 Specification of stainless steel cable mesh



The specifications of woven stainless steel rope mesh





Cable diameter

Mesh opening size

Nominal break

inch

mm

inch

mm

lbs.

1/8

3.2

4x4

102x102

1600

1/8

3.2

3x3

76x76

1600

1/8

3.2

2x2

51x51

1600

3/32

2.4

4x4

102x102

920

3/32

2.4

3x3

76x76

920

3/32

2.4

2x2

51x51

920

5/64

2.0

3x3

76x76

676

5/64

2.0

2x2

51x51

676

5/64

2.0

1-1/2x 1-1/2

38x38

676

1/16

1.6

3x3

76x76

480

1/16

1.6

2x2

51x51

480

1/16

1.6

1-1/2x 1-1/2

38x38

480

1/16

1.6

1x1

25.4x25.4

480

3/64

1.2

1-1/2x 1-1/2

38x38

270

3/64

1.2

1x1

25.4x25.4

270

3/64

1.2

4/5x4/5

20x20

270



 The specifications of ferrule stainless stee rope mesh

The production of stainless steel rope mesh

Stainless steel rope mesh is 100% handmade.





The application of stainless steel rope mesh





1. Green Facade - Cable System for Most Climbing Plants

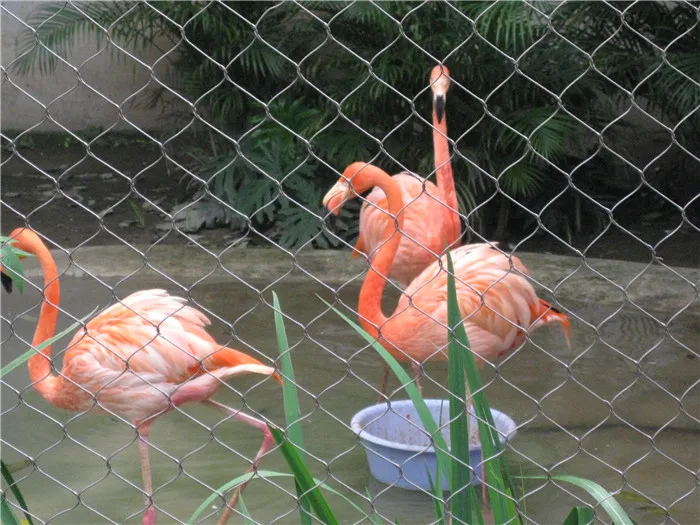

2. Aviary Netting - Lightweight, Durable and Long Lasting

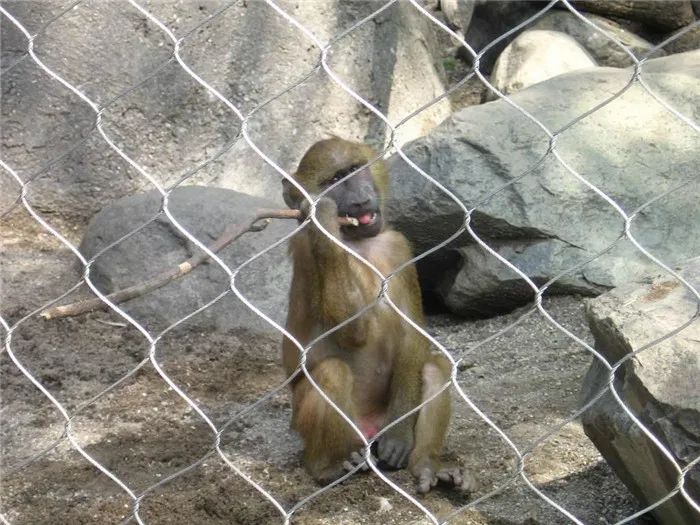

3. Cable Zoo Mesh - Solution to Enclosing Most Animals



4. Helipad Safety Net - Modular Heliport Webbing



5. Safety Net - Structural Measure to Prevent Suicide



6. Cable Mesh - Excellent Solution to Safety



7. Steel Mesh Balustrade - bridge, stair, balcony, path

The advantage of the stainless steel wire rope mesh
1.The netting is clipped to the cable.

2.The hole size and diameter can be modified.
3.It can be made to customer orders and statically tested – especially suitable for facades.
4.High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
5.Anti-corrosive, resist the rust, can be repeated use.
6.Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8.Without toxic material, safety, environmental protection.

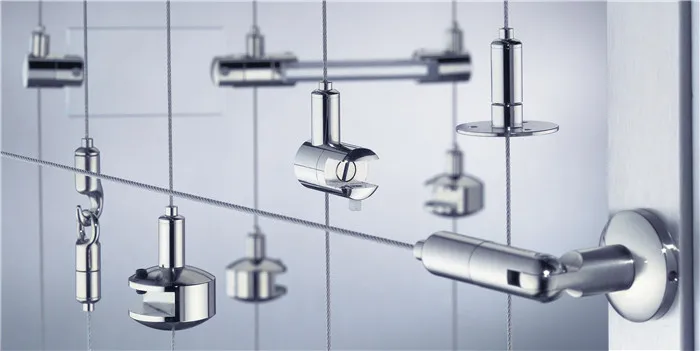

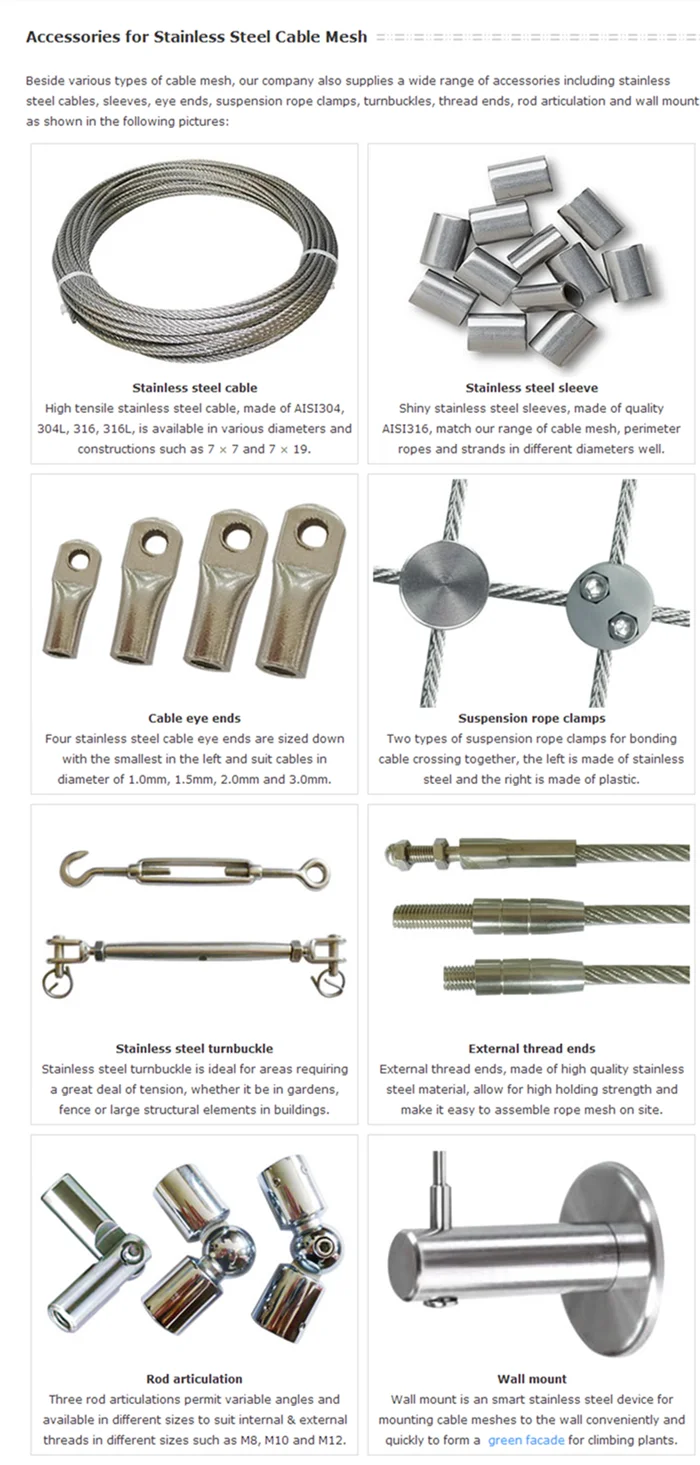

The accessories of stainless steel rope mesh



Packaging & Shipping

 Packaing of stainless steel rope mesh

It  can be packed in wooden box or carton

Shipment of stainless steel rope mesh

For sample order ,we will send stainless steel rope mesh to you by express.

For big order ,we will send stainlesss steel rope mesh to you by air or sea.
